PHT04-01(3),PHT06-01(3),PHT08-01(3),PHT10-01(3),PHT12-02(3),快插式管接头

点击图片查看原图

型号：	PHT04-01(3),PHT06-01(3),PHT08-01(3),PHT10-01(3),PHT12-02(3),
PDF下载：	如需产品详细说明请与销售客服联系
浏览次数：	249

公司基本资料信息

联系人销售员1439(女士)
电话13861877712
地区江苏-无锡市
地址无锡市会北路28-135

详细说明

PHT04-01(3),PHT06-01(3),PHT08-01(3),PHT10-01(3),PHT12-02(3),快插式管接头
PHT04-02(3),PHT04-03(3),PHT04-04(3),PHT06-02(3),PHT06-03(3),PHT06-04(3),PHT08-02(3),

PHT08-03(3),PHT08-04(3),PHT10-02(3),PHT10-03(3),PHT10-04(3),PHT12-03(3),PHT12-04(3),

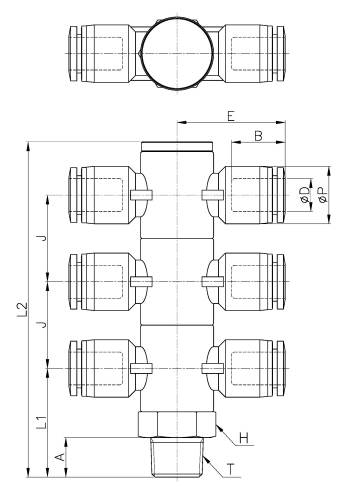

Model	￠D	￠P	T	L1	L2	E	A	B	J	H (Hex)	ORIFICE	WEIGHT(g)	BOX(EA)
PHT04-01(3)	4	10.5	R 1/8	22.5	69.7	23.3	8	14.8	17.9	14	3.2	57	20
PHT04-02(3)	4	10.5	R 1/4	27.5	84.7	25.1	10	14.8	21.9	17	3.2	86	20
PHT04-03(3)	4	10.5	R 3/8	29	86.7	27	11	14.8	21.9	21	3.2	128	12
PHT04-04(3)	4	10.5	R 1/2	34.1	97.3	29	14	14.8	23.9	24	3.2	187	9
PHT06-01(3)	6	12.5	R 1/8	22.5	69.7	24.1	8	16.4	17.9	14	4	62	15
PHT06-02(3)	6	12.5	R 1/4	27.5	84.7	26	10	16.4	21.9	17	5	91	15
PHT06-03(3)	6	12.5	R 3/8	29	86.7	27.9	11	16.4	21.9	21	5	132	12
PHT06-04(3)	6	12.5	R 1/2	34.1	97.3	29.3	14	16.4	23.9	24	5	191	9
PHT08-01(3)	8	14.5	R 1/8	22.5	69.7	25.6	8	18.3	17.9	14	5	67	15
PHT08-02(3)	8	14.5	R 1/4	27.5	84.7	27.4	10	18.3	21.9	17	7	98	12
PHT08-03(3)	8	14.5	R 3/8	29	86.7	29.3	11	18.3	21.9	21	7	136	12
PHT08-04(3)	8	14.5	R 1/2	34.1	97.3	30.7	14	18.3	23.9	24	7	199	8
PHT10-01(3)	10	17.5	R 1/8	22.5	69.7	28.1	8	20.2	17.9	14	5	83	10
PHT10-02(3)	10	17.5	R 1/4	27.5	84.7	29.8	10	20.2	21.9	17	8	112	10
PHT10-03(3)	10	17.5	R 3/8	29	86.7	31.9	11	20.2	21.9	21	8	152	8
PHT10-04(3)	10	17.5	R 1/2	34.1	97.3	33.7	14	20.2	23.9	24	8	209	8
PHT12-02(3)	12	20.5	R 1/4	27.5	84.7	33	10	22.9	21.9	17	8	133	8
PHT12-03(3)	12	20.5	R 3/8	29	86.7	35.1	11	22.9	21.9	21	8	171	8
PHT12-04(3)	12	20.5	R 1/2	34.1	97.3	37.4	14	22.9	23.9	24	8	226	8
