PWJO6-O4,PWJ1/4-5/32,PWJO8-O6,PWJ5/16-1/4,PWJ10-O8,PWJ3/8-5/16,PWJ12-10,快插式气动管接头
Model | ¢D1 | ¢D2 | ¢P | L | J | A | B | ORIFICE | WEIGHT(g) | BOX(EA) |
PWJ06-04 | 6 | 4 | 10.5 | 57.4 | 10.5 | 25 | 15.5 | 2.6 | 6 | 100 |
PWJ08-06 | 8 | 6 | 12.5 | 59.4 | 12.5 | 26 | 16.9 | 4 | 10 | 50 |
PWJ10-08 | 10 | 8 | 14.5 | 64.4 | 14.5 | 28 | 18.6 | 5.6 | 13 | 50 |
PWJ12-10 | 12 | 10 | 17.6 | 70.8 | 17.6 | 30 | 20.3 | 7.5 | 20 | 25 |

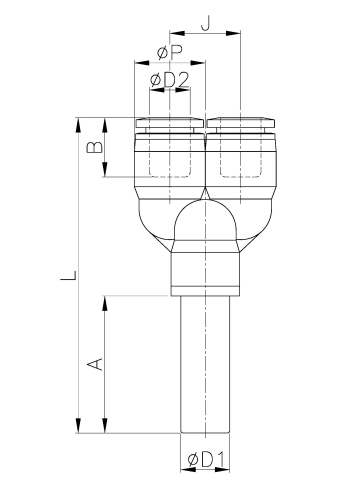

外形尺寸
