一、产品[Z41X 消防专用信号闸阀]的详细资料：
产品名称：Z41X 消防专用信号闸阀产品特点：信号闸阀，信号蝶阀常应用于自动喷水消防管路系统，来临界控供水管路，可以远地指示阀门开度。升杆式闸阀及附开度指示闸阀也经常应用于消防系统，如果闸阀安装位置离地面较高时，一般使用升杆闸阀，可以明显指示闸阀开度，若安装位置较低。则需用付开度指示闸阀。 消防专用信号弹性座封闸阀,消防闸阀,信号弹性座封闸阀。

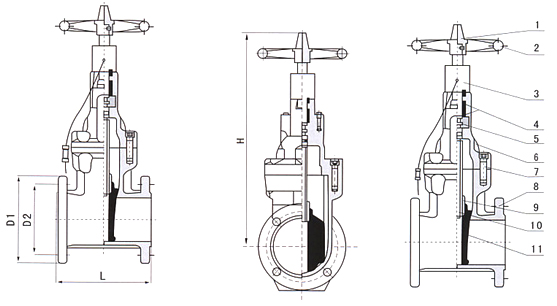

二、Z41X 消防专用信号闸阀主要零部件材料：
NO. | 零件名称 | 材质 |
1 | 传动帽 | 球墨铸铁、铸钢 |
2 | 手轮 | 可锻铸铁 |
3 | 防尘罩 | 塑料 |
4 | 密封圈 | 丁腈橡胶、三元乙丙 |
5 | 止推轴承 | 锡青铜 |
6 | 阀盖 | 灰铸铁、球墨铸铁、铸钢 |
7 | 螺栓 | 碳钢、不锈钢 |
8 | 阀体 | 碳钢、球墨铸铁、铸钢 |
9 | 铜螺母 | 锡青铜 |
10 | 阀杆 | 不锈钢 |
11 | 阀瓣 | 球墨铸铁+三元乙丙或丁腈橡胶 |
三、Z41X 消防专用信号闸阀主要技术参数：
公称压力：1.0～2.5MPa
公称通径：50～400mm
工作温度：0～120℃
适用介质：水、油、气等
法兰标准：GB/T17241.6GB9113
试验标准：GB13927API598
四、Z41X 消防专用信号闸阀消防专用信号闸阀主要连接外型尺寸：
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
L | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
H（全开） | 732 | 773 | 820 | 870 | 915 | 1003 | 1110 | 1263 | 1360 | 1550 | 1610 | 1900 | 1938 | 2130 |
