Q45F三通四密封球阀概述:
 Q45F三通四密封球阀可分为L形和T形,L形(Q44F)三通球阀用于介质流向的切换,能使相互垂直的两个通道连接;T形(Q45F)三通球阀用于介质分流、合流及流向切换。T形三通可以使三个通道相互连通或使其中的两个通道连通。三通球阀一般采用两阀座结构,亦可根据用户要求采用四阀座结构。





一、Q45F三通四密封球阀性能参数



试验压力

公称压力(Mpa)

Mpa

1.6

2.5

4.0

CL150

JIS10K

强度试验

2.4

3.8

6.0

3.2

2.4

密封试验

1.8

2.8

4.4

2.2

1.5

气密试验

0.5-0.7

工作温度

PTFE≤150℃ PTL≤300℃

适用温度

C:水、油、气;P:硝酸类;R:醋酸类



二、Q45F三通四密封球阀主要零件材料



阀体、阀盖

WCB、CF8

球体

WCB+Hcr、CF8

阀杆

2Cr13、CF8

阀座

PTFE

填料

PTFE

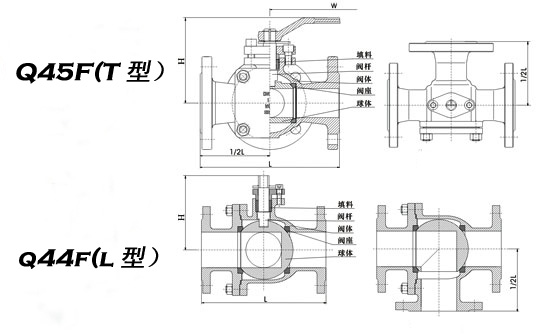

三、Q45F三通四密封球阀主要外形尺寸



公称压力

公称通径

L

L1

H

W

重量(kg)

Mpa

mm

in

mm

mm

mm

mm

1.6

2.5

4.0

CL150

JIS10K

1.6
2.5
4.0
CL150
JIS10K

15

1/2

130

65

62

100

2.5

3.0

3.5

2.5

2.5

20

3/4

150

75

68

160

3.0

3.5

4.5

3.0

3.6

25

1

160

80

75

160

4.8

5.0

6

5.0

5.0

32

1 1/4

180

90

85

200

6.5

7

8.5

7

7

40

1 1/2

200

100

95

200

8.5

9

10.5

9

9

50

2

230

115

110

250

11

12

14

12

11

65

2 1/2

290

145

130

300

15

17

20

16

16

80

3

310

155

155

400

21

22

32

21

22

100

4

350

175

180

500

33

36

50

36

36

125

5

400

200

250

600

65

70

80

68

70

150

6

480

240

275

800

103

110

120

105

105

200

8

580

290

325

1000

152

168

180

160

160
