KF700E-FA-1-A-40,KF700E-FA-2-B-50,KF700E-FA-3-C-65,电磁流量计
KF700E-KA-1-A-80,KF700E-KA-2-B-100,KF700E-KA-3-C-125,电磁流量计
KF700E-VA-1-A-150,KF700E-VA-2-B-200,KF700E-VA-3-C-250,电磁流量计
KF700E-FA-1-A-300,KF700E-FA-2-B-350,KF700E-FA-3-C-400,电磁流量计
KF700E-KA-1-A-450,KF700E-KA-2-B-500,KF700E-KA-3-C-600,电磁流量计
|

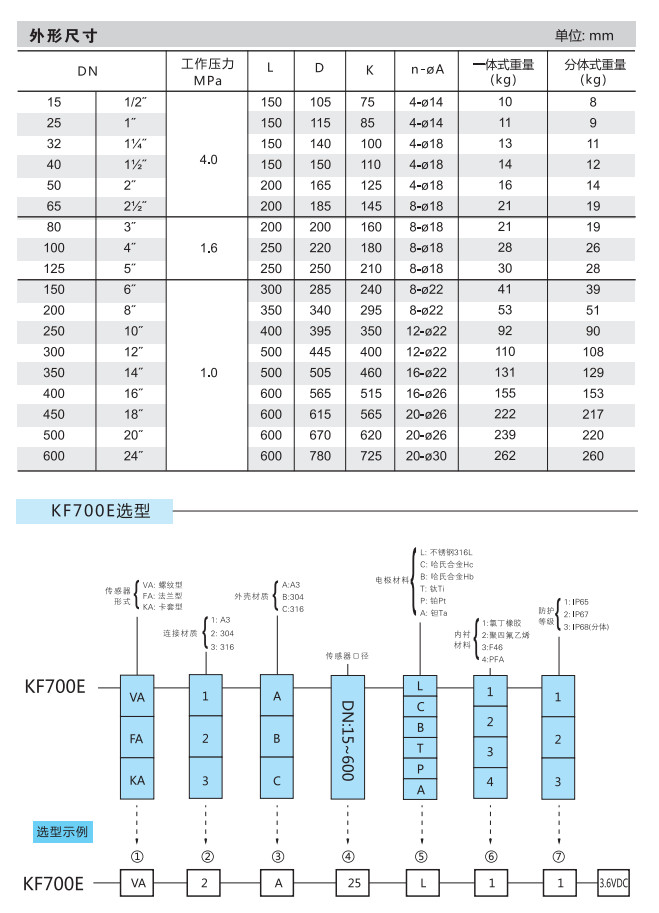

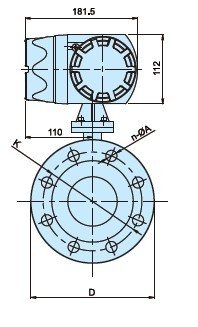

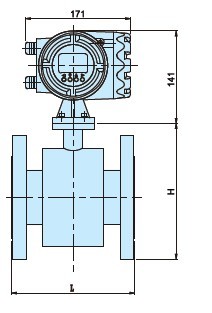

DN mm |
工作压力 |
L |
D |
K |
n-￠A |
一体式重量 |
分体式重量 |
|
|
Mpa |
kg |
kg |
||||||
|
25 |
1" |
4.0 |
150 |
115 |
85 |
4-￠15 |
11 |
9 |
|
32 |
1¼" |
150 |
140 |
100 |
4-￠18 |
13 |
11 |
|
|
40 |
1½" |
150 |
150 |
110 |
4-￠18 |
15 |
12 |
|
|
50 |
2" |
200 |
165 |
125 |
4-￠18 |
16 |
14 |
|
|
65 |
2½" |
200 |
185 |
145 |
8-￠18 |
21 |
19 |
|
|
80 |
3" |
200 |
200 |
160 |
8-￠18 |
21 |
19 |
|
|
100 |
4" |
1.6 |
250 |
220 |
180 |
8-￠18 |
28 |
26 |
|
125 |
5" |
250 |
250 |
210 |
8-￠18 |
30 |
28 |
|
|
150 |
6" |
300 |
285 |
240 |
8-￠22 |
41 |
39 |
|
|
200 |
8" |
1.0 |
350 |
340 |
295 |
8-￠22 |
53 |
51 |
|
250 |
10" |
400 |
395 |
350 |
12-￠22 |
92 |
90 |
|
|
300 |
12" |
500 |
445 |
400 |
16-￠22 |
110 |
108 |
|
|
350 |
14" |
500 |
505 |
460 |
16-￠22 |
131 |
129 |
|
|
400 |
16" |
600 |
565 |
515 |
16-￠26 |
155 |
153 |
|
|
450 |
18" |
600 |
615 |
565 |
20-￠26 |
222 |
217 |
|
|
500 |
20" |
600 |
670 |
620 |
20-￠26 |
239 |
220 |
|
|
600 |
24" |
600 |
780 |
725 |
20-￠30 |
262 |
260 |
|
