用途及特点
适用于烟气温度测量，当保护管磨损穿孔仍然防止有毒有害气体泄漏。
技术参数表
| 热电偶 | 测温元件 | 外保护管 | 工作温度 | 使用温度 |
| K型 S型 R型 |
单支 | 耐磨套管 | 0～1100℃ | <2.5MPa |
选型表
| WR | W:温度传感器 R:热电偶 | ||||||||
| 代号 | 感温元件材料 | ||||||||
| K | 镍铬一镍硅，K分度号 | ||||||||
| S | S分度号|铂铑10-铂 | ||||||||
| R | B分度号|铂铑10-铂 | ||||||||
| 代号 | 结构形式 | ||||||||
| KG | 防内漏专用代号 | ||||||||
| 代号 | 偶丝对数 | ||||||||
| 1 | 单支 | ||||||||
| 2 | 双支 | ||||||||
| 代号 | 接线盒形式 | ||||||||
| 3 | 防水式接线盒（防护等级IP65） | ||||||||
| 4 | 防爆式接线盒（防爆等级ExdIIBT4或dIICT6） | ||||||||
| 代号 | 测量端形式 | ||||||||
| 1 | 绝缘式 | ||||||||
| 2 | 接地式 | ||||||||
| 3 | 绝缘分离式（适用双支） | ||||||||
| 代号 | 安装固定装置 | ||||||||
| B | 阻漏式 | ||||||||
| 代号 | 安装固定形式 | ||||||||
| 1 | 无固定过程连接 | ||||||||
| 2 | 固定螺纹连接 | ||||||||
| 3 | 活动法兰 | ||||||||
| 4 | 固定法兰 | ||||||||
| 5 | 整体锥孔锥形温度套管 | ||||||||
| 代号 | 保护管直径 | ||||||||
| 0 | Φ16外保护管 | ||||||||
| 1 | Φ20外保护管 | ||||||||
| 2 | 特殊外径尺寸温度套管 | ||||||||
| WR | K | KG | 2 | 3 | 1 | B | 2 | 0 | WRKKG2-31B20 |

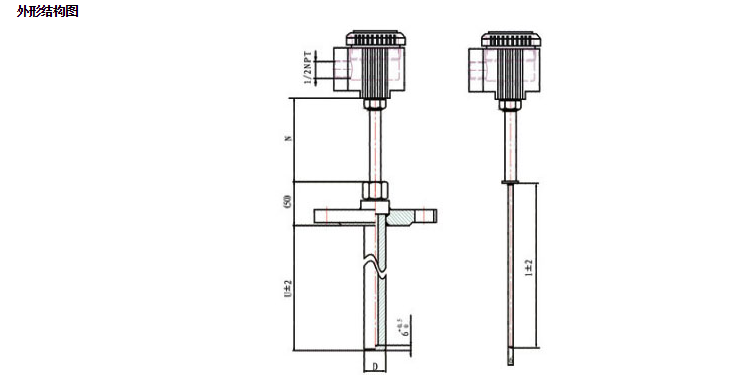

外形结构图
