SWP-LED系列多路巡检控制仪用于工业控制系统多测量点的巡回检测、显示和报警。
一、主要特点
可选择各输入通道统一报警控制输出(或统一变送输出)或各输入通道分别报警控制输出(或分别变送输出)。各通道统一报警控制输出并且可选择报警带记忆（任一通道报警未解除将一直报警直至所有通道均无报警）或报警无记忆（巡回至有报警通道时输出报警，巡回至无报警的通道时则不报警）。

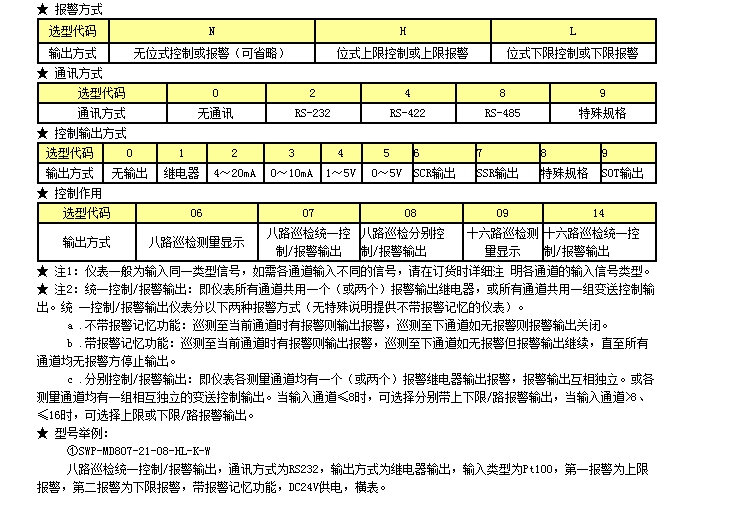

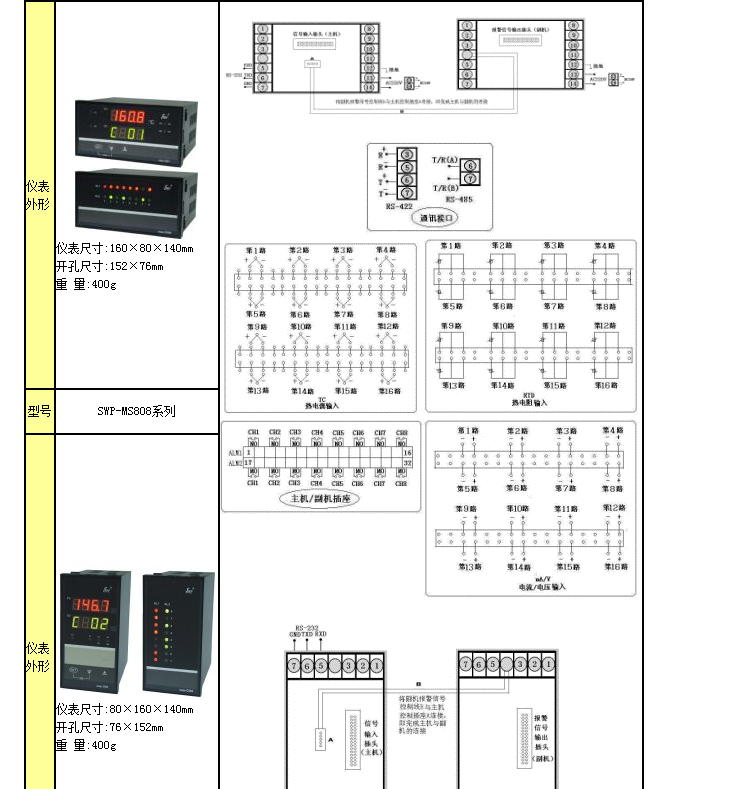

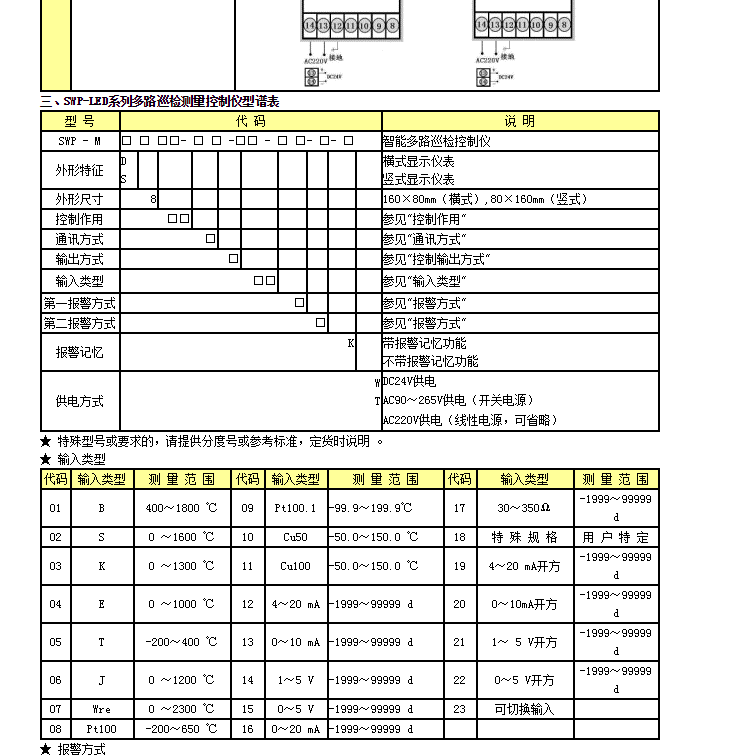

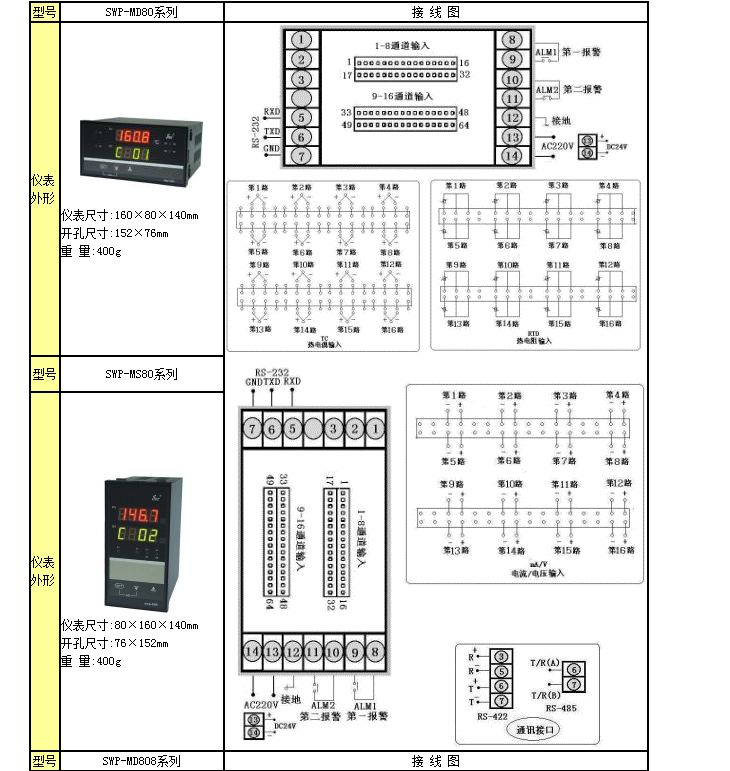

二、仪表外形及接线图（以下为基本配线方式，特殊订货请参见随机接线图）
SWP-MD806-01-03-N,SWP-MD806-01-08-N,SWP-MD806-01-12-N,SWP-MD806-01-23-N,
SWP-MD806-02-03-N,SWP-MD806-02-08-N,SWP-MD806-02-12-N,SWP-MD806-02-23-N,SWP-MD806-81-03-N,SWP-MD806-81-08-N,SWP-MD806-81-12-N,SWP-MD806-81-23-N,
SWP-MD806-82-03-N,SWP-MD806-82-08-N,SWP-MD806-82-12-N,SWP-MD806-82-23-N
